How to Choose a Magnifying Lamp for Electronics Repair and PCB Inspection

A PCB repair bench can look well lit until a technician needs to examine a fine solder joint, identify a small component marking, or work around a densely populated circuit board. At that point, the quality of the view—and the space available to work—becomes critical.

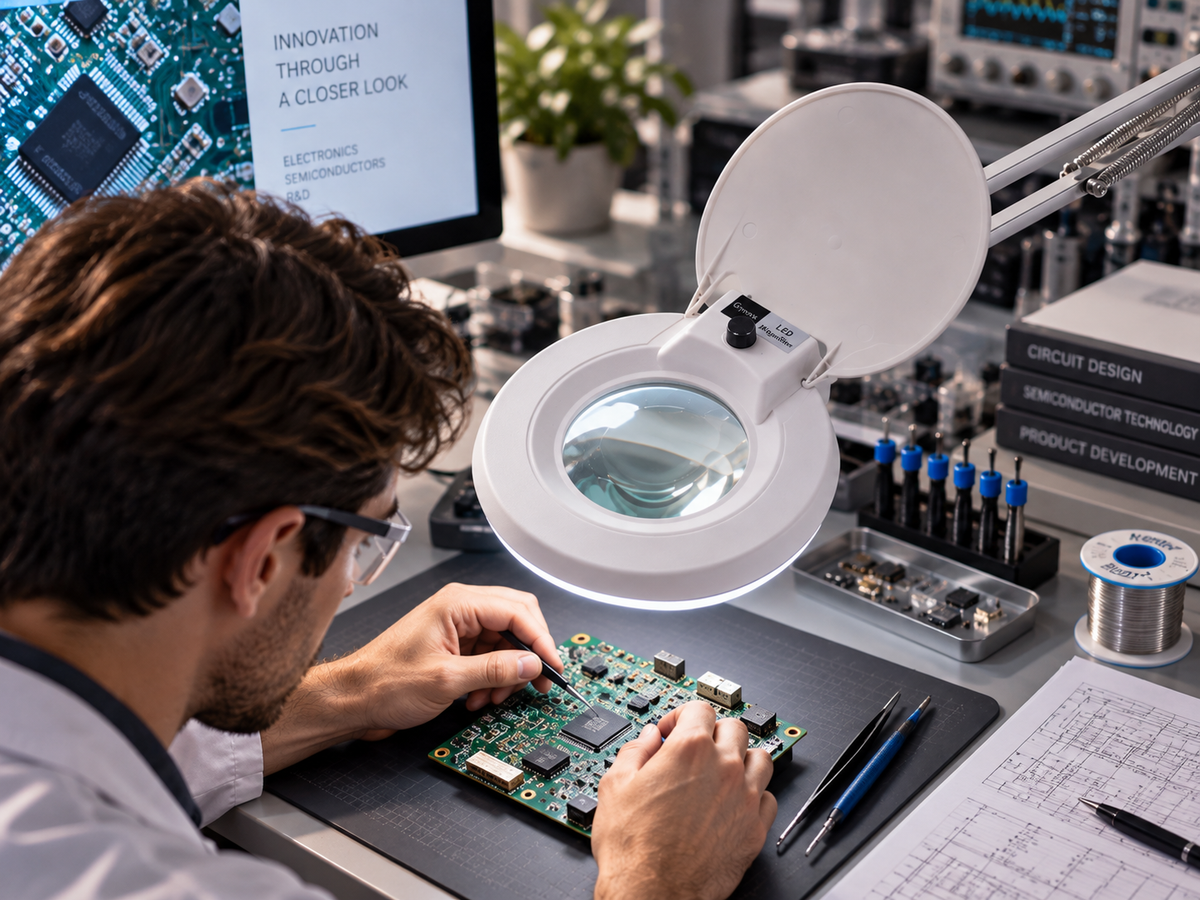

An LED magnifying lamp can bring illumination and hands-free magnification to a workstation, making it useful for a range of electronics repair and visual inspection tasks. But choosing one involves more than comparing magnification ratings. A powerful lens offers little practical benefit if it leaves insufficient room for a soldering iron or forces the technician to reposition the lamp every few minutes.

For electronics repair businesses, inspection teams, and workshop owners, the best starting point is the work itself: what needs to be seen, what tools must fit beneath the lens, and how the equipment will be used throughout the day.

This guide explains how to evaluate those requirements, compare clamp-mounted and desk-mounted designs, and select magnifying equipment for individual or multiple repair workstations.

1. Match the Magnifying Lamp to the Work Being Performed

Not every electronics workstation needs the same level of magnification.

A technician examining connector damage or checking accessible solder joints on a relatively large PCB has different needs from someone replacing miniature surface-mount components.

Consider three common situations.

General PCB inspection: A technician visually checks solder joints, connectors, component identification markings, and signs of physical damage. A broad viewing area and convenient illumination can be more useful than maximizing magnification.

Electronics repair and soldering: The technician needs to see the work while handling tweezers, probes, a soldering iron, or other tools. Working clearance, comfortable positioning, and easy lamp adjustment become particularly important.

Fine-pitch rework and detailed inspection: Closely spaced component leads, miniature solder connections, and very small features may demand higher resolution and more specialized equipment, such as a stereo microscope.

The distinction matters because a magnifying lamp is not a substitute for every type of optical inspection system. It is generally better suited to accessible close-up work, general repair, assembly, and preliminary visual examination than to tasks requiring microscope-level detail.

For a small workshop, this may mean equipping general repair benches with magnifying lamps while keeping a microscope at a dedicated fine-detail inspection or rework station.

2. Look Beyond Magnification: Working Distance and Field of View

Magnification is important, but it should be evaluated alongside field of view and working distance.

These three factors largely determine how useful a magnifier will be during actual bench work.

Magnification and optical clarity

Higher magnification makes small features appear larger. It can also make it harder to view an entire circuit board or move between nearby components without adjusting the lens.

For general inspection, moderate magnification with a usable viewing area may be more convenient than a stronger lens with a narrow view.

For very small components, greater magnification may help, provided the optical quality and available working space remain suitable.

Magnification ratings also need careful interpretation. Manufacturers may use different conventions when describing magnifying power. Where an exact magnification requirement matters, procurement teams should request the relevant optical specifications rather than relying on a marketing label alone.

Field of view

Field of view describes how much of the work can be observed through the lens at one time.

A wider field is useful when scanning PCB sections, following visible circuit traces, or examining several nearby components.

A smaller field may be appropriate when concentrating on an individual detail, but it can slow work if frequent repositioning is required.

As magnification increases, field of view generally decreases, although the precise relationship depends on the optical design.

Working distance

Working distance is the space between the lens and the object being viewed.

For electronics repair, this can be a deciding factor.

A technician must be able to position a soldering iron, tweezers, probes, and their hands around the PCB without the lamp obstructing the operation.

A magnifier that looks effective during a brief visual demonstration may be inconvenient during actual soldering if the lens needs to be positioned too close to the board.

A practical evaluation: Place the magnifier over a representative PCB and check whether the operator can see the necessary detail while comfortably using the tools required for the task. If the lamp must constantly be lifted out of the way, a different optical setup may be more appropriate.

3. Choose Lighting That Helps Reveal Detail

Electronics work involves surfaces that reflect light differently. Solder joints can be highly reflective, circuit boards are often relatively dark, and component markings may have limited contrast.

A magnifying lamp's integrated LED lighting can help illuminate the work area, but its usefulness depends on more than the number of LEDs.

Brightness and glare

Bright illumination is not always better illumination.

Strong reflections from solder joints or metallic components can obscure surface details. A technician may need to change the viewing angle, reposition the light, or reduce its intensity.

A dimmable LED magnifying lamp provides flexibility when the same workstation is used for different materials and inspection tasks.

For example, an operator moving between a dark PCB surface and reflective soldered connections may find adjustable brightness useful for managing glare.

Light distribution

The location and distribution of illumination also matter.

Integrated lighting around a magnifying lens can provide convenient localized illumination. However, the resulting visibility still depends on the lamp's position, the shape of the component, and surrounding light sources.

During a product evaluation, check for distracting reflections and shadows in the actual working position rather than judging the lamp solely by its appearance in product photography.

Color temperature and color rendering

Color temperature describes whether illumination appears warmer or cooler. Color rendering relates to how faithfully object colors appear under the light.

For work involving color-coded wires, material identification, or visible discoloration, these characteristics may be relevant.

A lamp with adjustable brightness does not necessarily have adjustable color temperature.

If accurate color assessment is important, request the supplier's measured lighting specifications.

For formal inspection work, equipment and procedures should also be evaluated against the standards adopted by the organization, rather than assuming that any LED magnifying lamp satisfies them.

4. Clamp-Mounted vs. Desk-Mounted Magnifying Lamps

The mounting method affects available work surface, installation flexibility, and how the technician positions the lamp.

Both clamp-mounted and freestanding desk-mounted magnifiers can be suitable for professional use, but they solve different workspace problems.

Consideration	Clamp-Mounted Lamp	Desk-Mounted Lamp
Installation	Secured to a compatible desk edge	Positioned on the desktop
Work surface	Keeps most of the tabletop available	Requires space for its base
Placement	Depends on clamp position and arm reach	Can be moved to another suitable location
Workstation suitability	Often practical for fixed repair benches	Useful for flexible or unclampable work surfaces
Main checks	Desk thickness, edge clearance, clamp security	Base footprint, stability, reach

When a clamp-mounted lamp makes sense

Imagine an electronics repair bench already holding a soldering station, power supply, circuit board holder, parts trays, and hand tools.

There may be little room for another desktop base.

A clamp-mounted magnifying lamp can position the lens and lighting over the work while keeping more of the tabletop available.

However, not all desk edges accommodate clamps. Thick worktops, support frames, cable trays, and unusual edge profiles may interfere with installation.

Before selecting a clamp-mounted model, verify the maximum clamp opening, the available mounting clearance, and whether the arm can reach the normal inspection position.

When a desk-mounted lamp is more practical

A freestanding desk-mounted lamp avoids the need for a suitable clamping edge.

It may be preferable for shared work areas, temporary inspection stations, or work surfaces where permanent clamp installation is inconvenient.

The trade-off is the space occupied by the base. Buyers should also check stability during normal adjustment, particularly when the arm is extended.

Neither mounting method is universally better. The appropriate choice is the one that fits the workstation without interfering with normal repair operations.

5. A Practical Selection Guide for Different Repair Workstations

Rather than choosing one model for every task, match the equipment configuration to the requirements of each work area.

Workstation or task	What to prioritize
General PCB visual inspection	Usable field of view, optical clarity, suitable illumination
Soldering and component replacement	Working distance, tool clearance, stable lamp positioning
Compact repair bench	Clamp compatibility, arm reach, available desk space
Shared or temporary inspection desk	Freestanding stability, repositioning flexibility
Fine-pitch component rework	Optical resolution, depth perception, specialized microscopy where needed
Multiple similar repair benches	Consistent specifications, mounting compatibility, availability and support

For example, a small electronics service business might operate four benches: two for routine repairs, one for assembly, and one for fine-pitch rework.

The routine repair benches could benefit from clamp-mounted magnifying lamps if space is limited. An assembly station with a different table configuration might be better suited to a desk-mounted model. The fine-pitch station may still need a stereo microscope.

This is an illustrative setup, not a universal equipment specification. The actual choice should follow the team's component sizes, inspection tasks, and working conditions.

The important lesson for procurement teams is that standardization should simplify work, not force every technician to use equipment that is poorly suited to their task.

6. Check Arm Stability, Reach, and Everyday Ergonomics

A magnifying lamp may be repositioned many times during a repair session.

The technician might inspect one component, move to a connector near the edge of the PCB, and then adjust the lamp again for a soldering operation.

A flexible arm is useful only if it can position the lens where it is needed and remain stable during normal work.

When evaluating a lamp, pay attention to how the arm behaves when extended, whether the head can be positioned comfortably, and whether nearby equipment limits movement.

A lamp that requires repeated adjustment or interferes with normal tool use can become inconvenient even if its optical performance is satisfactory.

For multi-unit purchasing, a short workstation trial is often more informative than relying solely on product specifications.

Choose a representative bench, install the equipment, and have a technician perform familiar tasks.

Observe whether the mounting position works, whether the lens remains at a useful viewing angle, and whether there is adequate room for the operator's tools.

For soldering applications, keep the lamp and its components clear of hot tools and follow the manufacturer's operating instructions.

7. When Should a Repair Team Use a Microscope Instead?

A magnifying lamp is well suited to many close-up tasks, but it has limitations.

For fine-pitch soldering, densely packed miniature components, or work where binocular depth perception is important, a stereo microscope may provide a more appropriate viewing system.

Digital inspection equipment may also be useful when an organization needs to capture, display, or share images for documentation.

The decision should be based on the smallest features that must be inspected and the operator's working requirements.

A magnifying lamp can complement these systems rather than replace them.

For example, a business may use magnifying lamps for general inspection and repair while reserving specialized microscopy for detailed rework.

When formal product acceptance is involved, the organization's applicable inspection procedures and standards determine what examination methods are appropriate.

8. Gynnx Magnifying Lamps for Professional Electronics Workbenches

Gynnx offers LED magnifying lamps with clamp-mounted and desk-mounted configurations for inspection, repair, assembly, and other detailed work.

The following models illustrate how different mounting and lighting arrangements may suit different workspaces.

Dimmable LED Clamp Magnifying Lamp — GY-CL02

The Gynnx Dimmable LED Clamp Magnifying Lamp combines hands-free magnification with adjustable LED brightness.

Its desk-clamp mounting arrangement helps preserve workspace, while the articulated arm allows the lamp head to be positioned over the task. A rotary dimmer adjusts the light intensity, and a flip-up cover protects the lens between uses.

White and green variants are offered, subject to availability.

For an electronics workstation where the technician regularly adjusts lighting or works with reflective components, this configuration is worth evaluating.

Classic LED Clamp Magnifying Lamp — GY-CL01

The Gynnx Classic LED Clamp Magnifying Lamp is a non-dimmable model with integrated LED lighting, an adjustable swing arm, and desk-clamp mounting.

It offers a more straightforward lighting arrangement for workstations that do not require brightness adjustment.

The lamp also includes a protective lens cover.

Classic LED Desk Magnifying Lamp — GY-DS01

The Gynnx Classic LED Desk Magnifying Lamp uses a freestanding desktop base rather than an edge-mounted clamp.

With integrated LED lighting, a repositionable arm, and simple on/off control, it is an alternative for benches where a clamp cannot be conveniently installed.

Product availability may vary. For technical requirements not yet confirmed in published specifications, buyers should contact Gynnx before relying on those values for procurement decisions.

Explore additional professional uses on the Gynnx Professional Applications page.

9. Buying Magnifying Lamps for a Repair Team: A Procurement Checklist

Purchasing for several technicians introduces considerations beyond the needs of a single workstation.

Before placing a multi-unit order, confirm the following.

Task suitability: Identify the smallest features operators need to examine and whether general magnification is sufficient.

Workspace compatibility: Check desk dimensions, clamp clearance or base footprint, arm reach, and available working space.

Optical requirements: Confirm essential magnification, field-of-view, and working-distance specifications with the supplier where applicable.

Lighting requirements: Decide whether fixed brightness is sufficient or adjustable intensity would be beneficial. Verify color-rendering or other measured lighting characteristics if they are critical.

Operating environment: Determine whether electrical safety, ESD-control, or other workplace requirements apply. Do not assume that a general-purpose magnifying lamp carries a particular certification without documentation.

Consistency across workstations: Decide whether a single configuration will serve the team or whether different stations need different equipment.

Supply and support: Ask about the exact model, current availability, delivery arrangements, warranty conditions, and any multi-unit purchasing options.

For larger purchasing decisions, evaluating a representative unit before standardizing the equipment can help reveal problems that are difficult to identify from photographs and specifications alone.

A simple purchasing evaluation can record whether the lamp fits the bench, provides adequate working clearance, remains stable during adjustment, and meets the operator's visual requirements.

This gives the purchasing team a clearer basis for comparison between potential equipment options.

Frequently Asked Questions

Is a magnifying lamp suitable for soldering?

A magnifying lamp can assist with soldering tasks when the lens provides sufficient working clearance and a useful view. For very small components or complex fine-pitch rework, a stereo microscope may be more appropriate. The lamp should be positioned safely away from soldering heat.

Does higher magnification always improve PCB inspection?

No. Greater magnification can reduce the visible area and may limit working distance. The appropriate level depends on component size, optical quality, viewing requirements, and whether tools must be used beneath the lens.

Is dimmable lighting the same as adjustable color temperature?

No. Dimming changes light intensity, while color temperature changes the appearance of the emitted light. A lamp may provide brightness adjustment while maintaining a fixed light color.

Can an LED magnifying lamp be used for inspection under IPC standards?

The suitability of any inspection equipment depends on the requirements of the applicable standard, inspection task, and quality procedure. A general-purpose magnifying lamp should not automatically be treated as compliant or certified. Organizations should verify the necessary conditions and equipment capabilities for their specific work.

How should a small electronics business choose between clamp and desk models?

Start with the physical workbench. A clamp-mounted lamp may be preferable when tabletop space is limited and the desk edge supports secure installation. A desk-mounted lamp may be easier to place where clamping is impractical. Arm reach, stability, and tool clearance should also be evaluated.

Planning to Equip Multiple Electronics Repair Workstations?

Choosing a magnifying lamp becomes easier when the inspection task, working distance, lighting needs, and mounting constraints are considered together.

For repair businesses, technical workshops, and teams evaluating magnifying lamps for multiple workstations, Gynnx offers a business inquiry channel for discussing available products and purchasing requirements.

Visit Gynnx Business & Volume Orders and share your preferred model, estimated quantity, shipping destination, and any important workstation requirements.

Our team can help you review product availability and suitable ordering arrangements.
